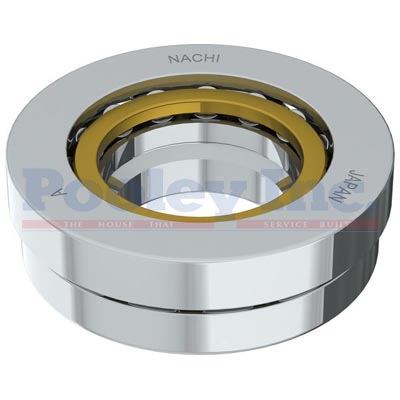

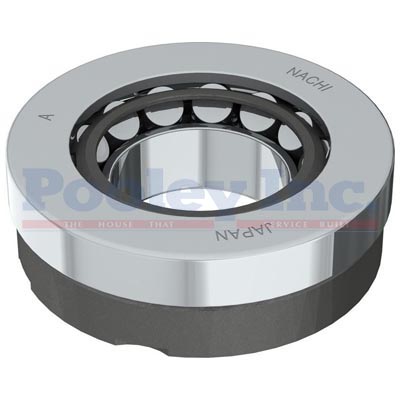

29336E - Spherical Roller Thrust Bearing - (180x300x73)SPHERICAL ROLLER THRUST BEARINGS

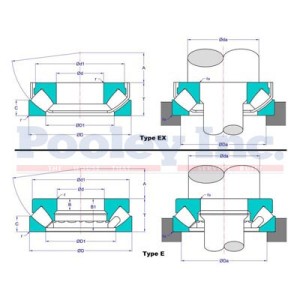

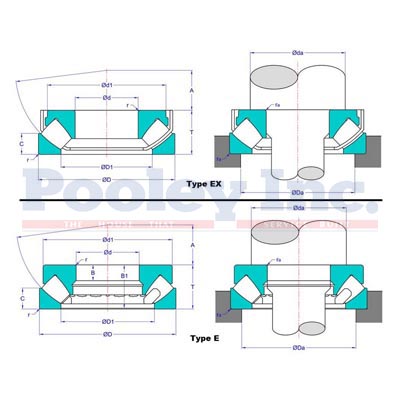

A Spherical Roller Thrust Bearing is a bearing that utilizes barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for some angular misalignment. There are two basic designs. A conventional “E-Type” design uses a machined brass cages while the “EX-Type” design uses an optimized internal design, larger rollers and a stamped steel cage for higher loads and longer life.

Spherical roller thrust bearings are used mostly in heavy-duty industrial applications where heavy axial or shock loads exist. They are commonly used in gearboxes, extruders, pumps, screw conveyors, marine propulsion and drilling equipment.

FEATURES & BENEFITS

• Improved roller roundness and raceway accuracy
• Reduced noise and vibration
• Cages are Stamped Steel (EX) for extra capacity or Machined Brass (E)
• Self-aligning and can accommodate low and high speeds
• Long life
• Low operating temperature

Unit of Measure: EA
Package Quantity:
