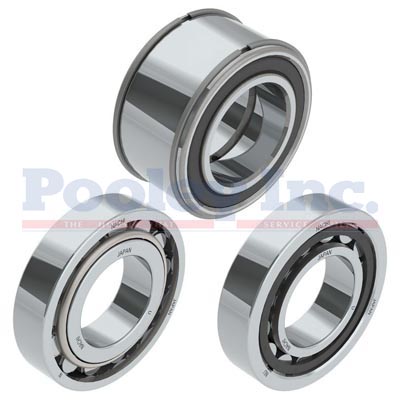

Cylindrical Roller Bearings utilize a modified cylindrical roller that provides line contact with the inner and outer ring raceways. They are suitable for high speeds and have a high radial load capacity. The rollers are guided by ribs on either the inner or outer rings. Depending upon the configuration, the bearings may or may not be able to accept any axial loading. The inner and outer rings are separable which may aid in the assembly/disassembly of components

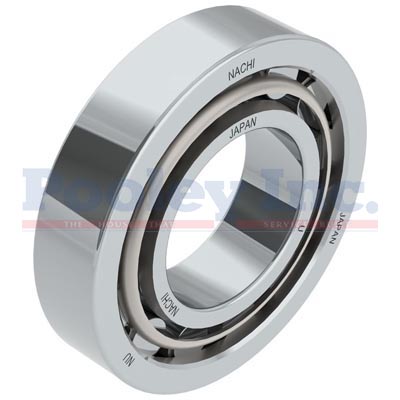

The ‘NU’ Type bearings has shoulders on both sides of the outer ring and no shoulder on the inner ring. This allows the shaft to move axially for thermal expansion. Some sizes may be available in a high capacity design (EG) that has larger diameter rollers and a polyamine cage. Stamped steel or machined brass (MY) cages are generally used.
These bearings are most commonly used in pumps, compressors, gearboxes, transmissions, rolling mills, crushers and pulverizers. This bearing is often used in high speed applications.
FEATURES & BENEFITS- Heavy radial load capacity
- Accommodates axial expansion and contraction
- Separable components simplify mounting and removal
- Not suitable for thrust loads
- Long life
Unit of Measure: EA
Package Quantity:
Digital Catalog

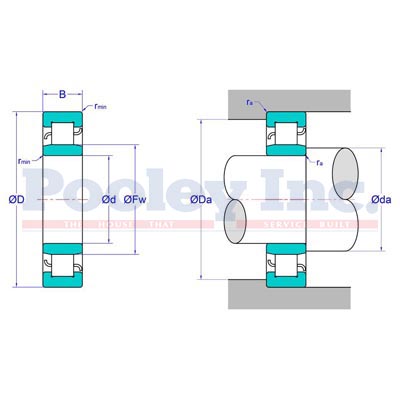

| Dimensions | |
| Bearing OD | 140 |
| Bearing ID | 80 |
| Bearing Width | 26 |
NU216C3
- Product Code: NAC NU216C3
- Availability: Confirmed After Ordering
-
$567.49
